Product Details:

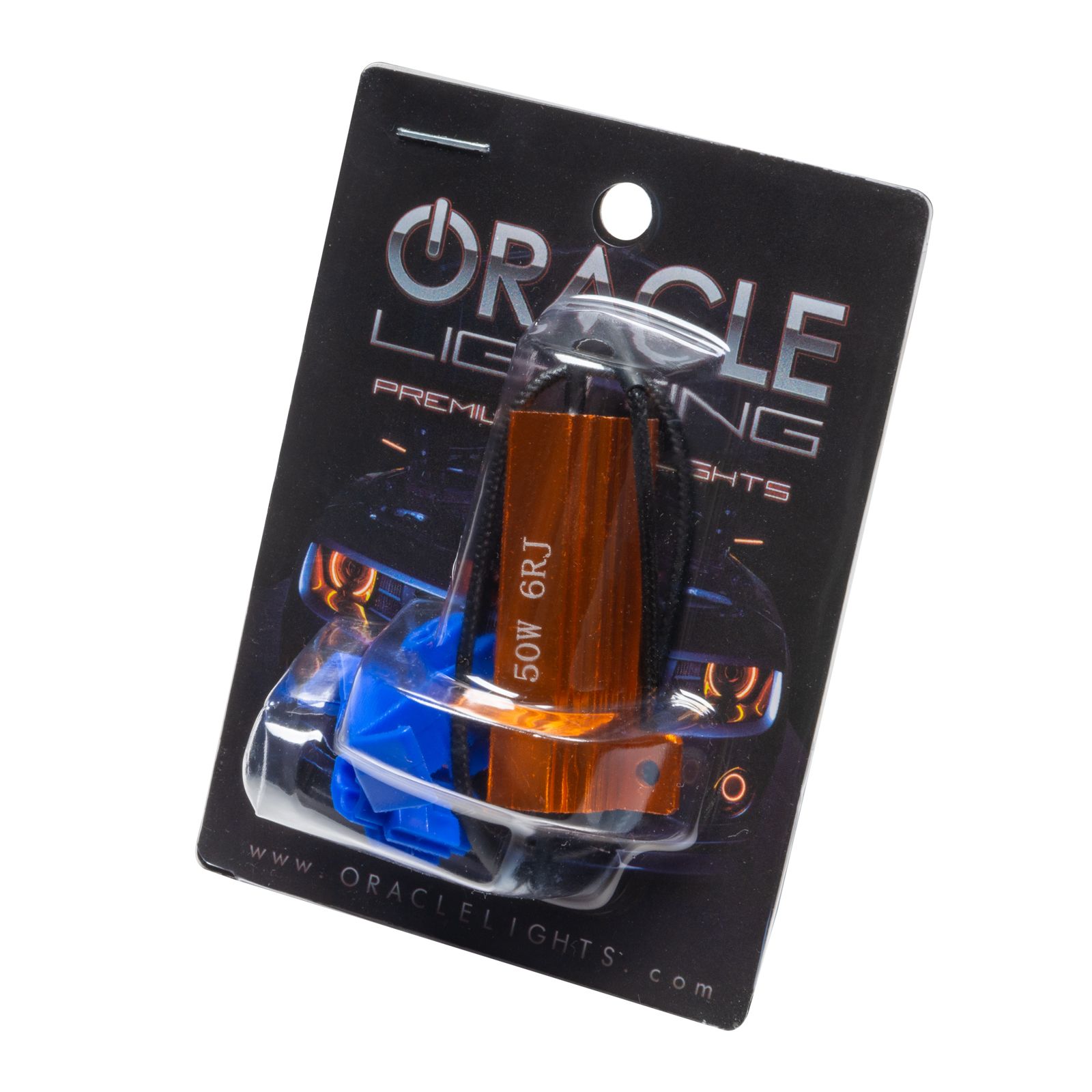

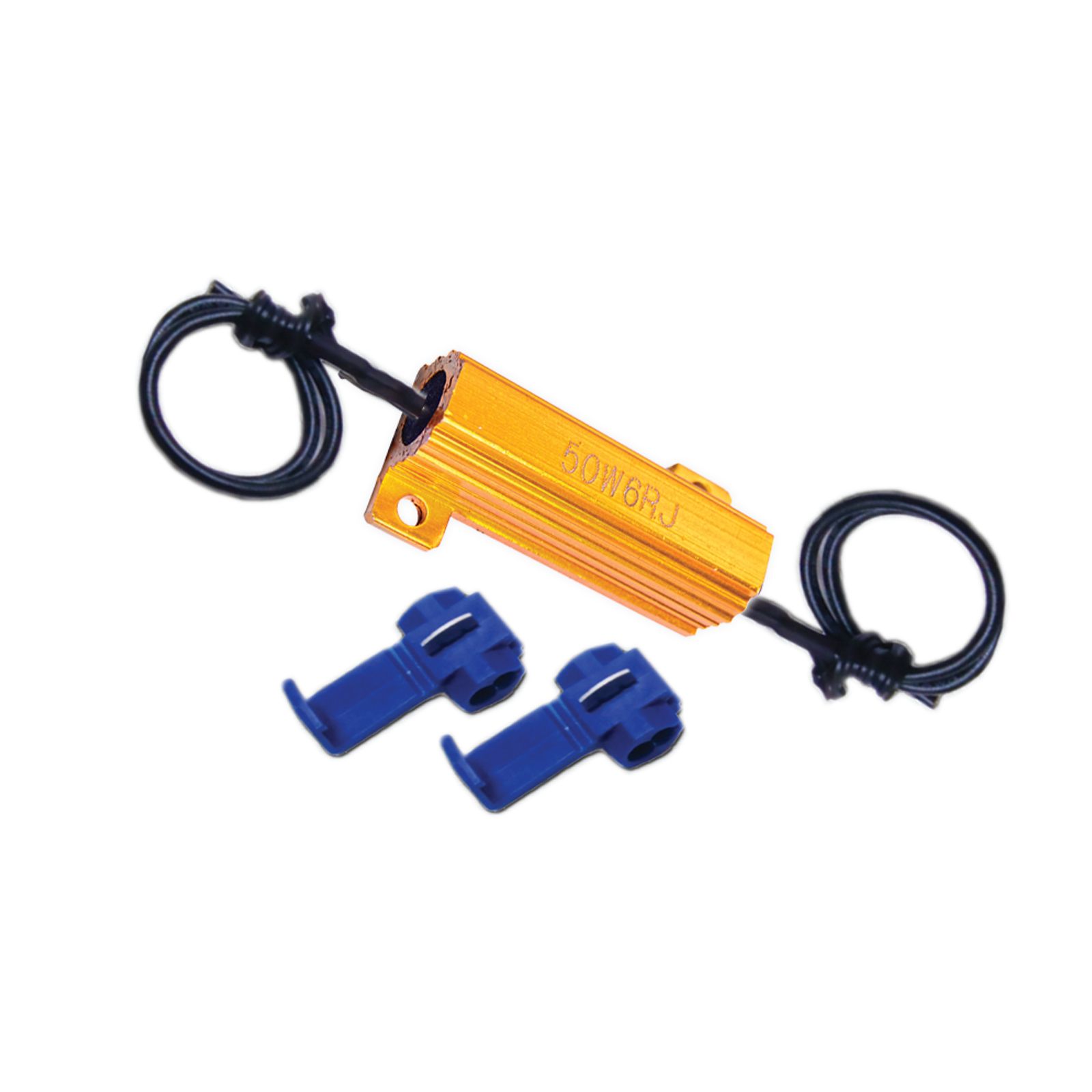

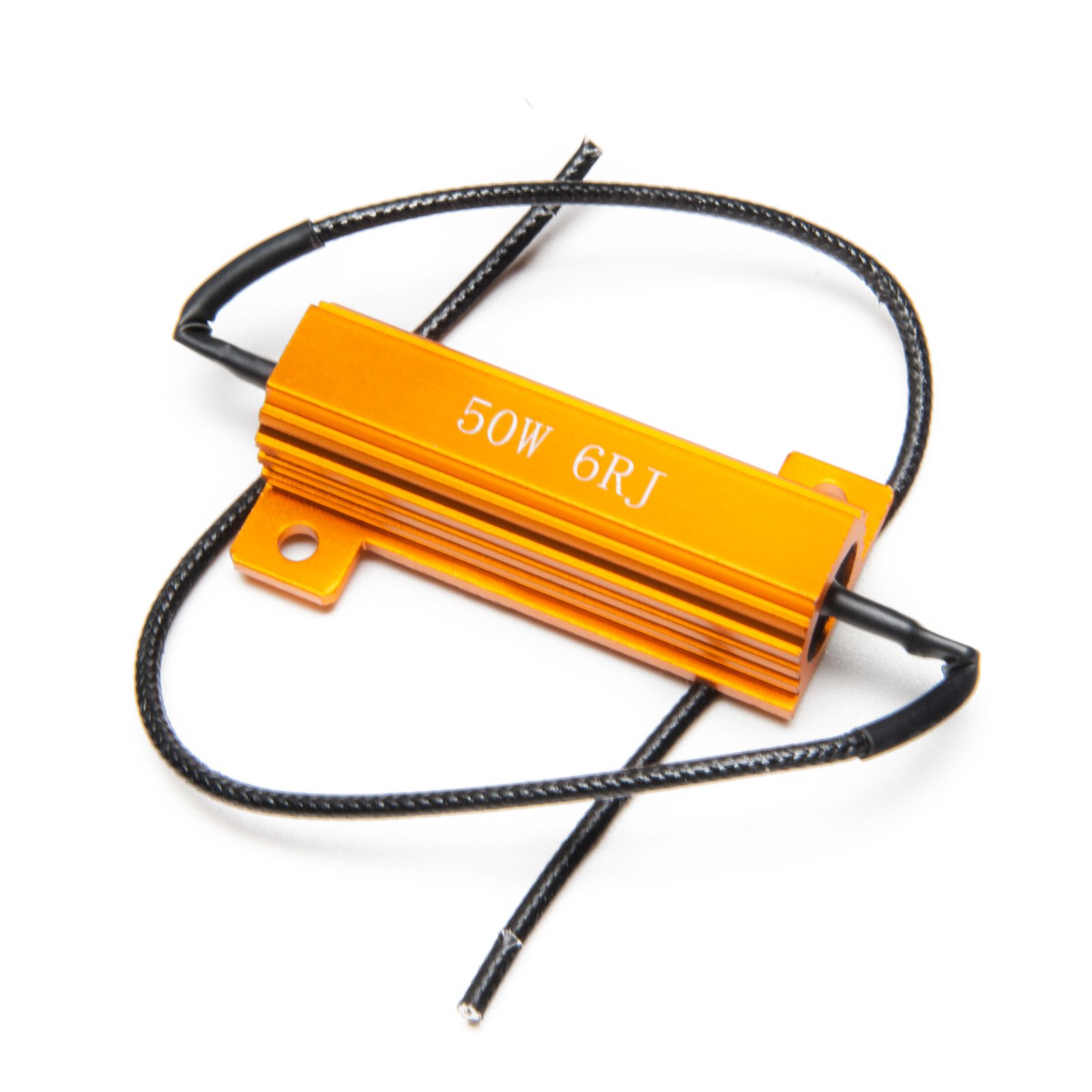

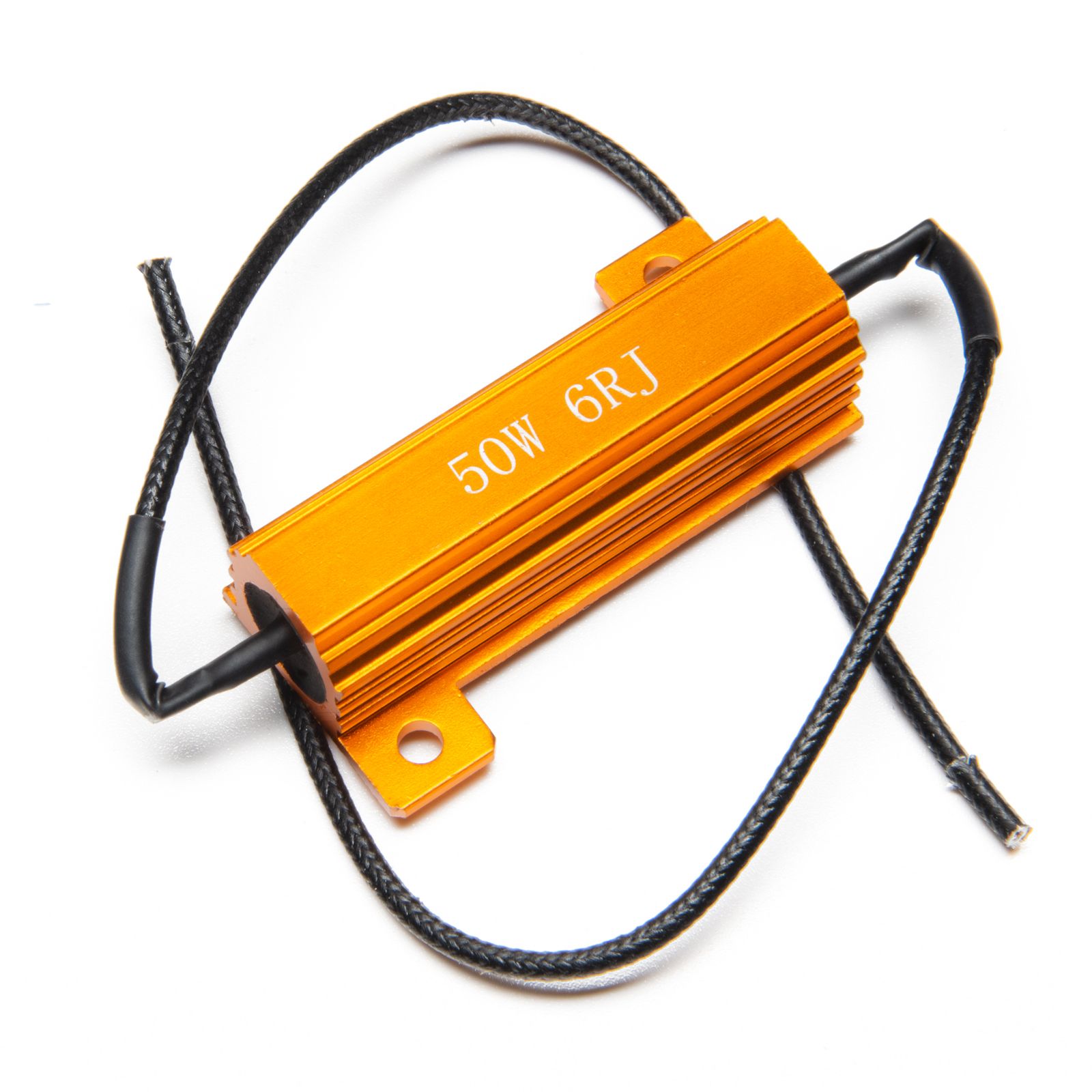

50W LED Turn Signal Load Equalizer
Operates at a safe temperature since part is encased in waterproof housing with heat sink fins.

Our Price: $8.75

Part # P311-0FD2C8F Manufacturer # 5013-504 Condition: New

Product can be shipped direct or picked up at the following store locations:

11 Garden Ave, Stoney Creek, ON
47438 Homestead Rd, Steeves Mountain, NB

ETA depends on stock at time of order.

Qty:

This 50W/6 ohm LED load equalizer is a must if you do not want to get a "rapid flash" when installing LED turn signal bulbs. The "rapid-flash" occurs because the high-efficiency LED bulb does not draw enough power for the vehicle to recognize it and assumes the bulb is missing. It causes the turn signal to blink rapidly to notify you there is something odd. Installation is simple, just connect the Load Equalizer to the positive and negative wires going to the turn signal bulb. This part is required wherever LED Signals have been used to replace normal incandescent or halogen bulbs. Most cars and motorcycles monitor the resistance in the turn signal circuit and will increase the flash rate when it senses too little resistance. The system was designed this way so the driver will know when a bulb has burnt out but it will also flash faster if LEDs are installed since they have almost no load (resistance). This unit will increase the load presented to the system so it will use the proper flash rate. This Load Equalizer is encased in a waterproof aluminum housing complete with heat sink fins to dissipate heat and operate at a safe temperature.

Product Attributes

Detail: This Load Equalizer Is Encased In A Waterproof Aluminum Housing Complete With Heat Sink Fins To Dissipate Heat And Operate At A Safe Temperature.
Dimensions: Dimensions Are Approx. 2 In. X .6 In. X .6 In.
Load Spec: This Unit Will Increase The Load Presented To The System So It Will Use The Proper Flash Rate.
Prop 65 - Long Label: Warning: This Product Contains Chemicals Known To The State Of California To Cause Cancer Or Birth Defects Or Other Reproductive Harm. For More Information: Www.p65warnings.ca.gov
Prop 65 - Warning: Warning - Both Cancer And Reproduction.jpg
Prop 65 (C, R or CR): Cr
Purpose: Eliminates The Inrapid Flashin When Installing Led Turn Signal Bulbs

Features:
- Eliminates the "rapid flash" when installing LED turn signal bulbs

Interchange/Part Number Cross Reference

This is a general purpose item, or a universal product, or requires additional fitment checks for your vehicle, outside of year, make, and model.

Packaging

Box Dimensions 4.00 x 9.00 x 9.00 in

Box Weight 1.00 lbs
